Liquid Instruments

Moku:Go

Moku:Go is the ultimate portable lab solution for engineers and students. With 12+ lab instruments and versatile connectivity, Moku:Go enables you to actively test your designs. Its optional programmable power supplies provide added flexibility. Experience the freedom to conduct tests anytime, anywhere with this ultra-portable device that easily fits in your backpack.

카탈로그 다운로드
Complete engineering lab that you can take anywhere

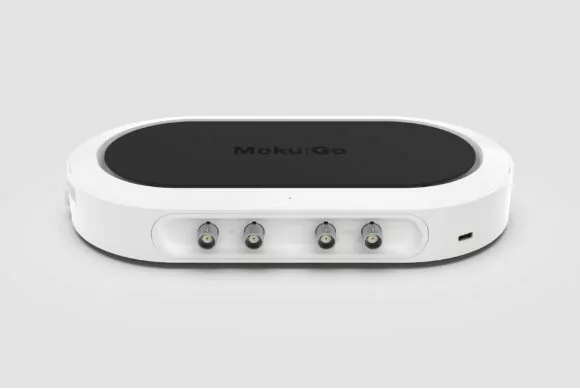

Moku:Go

Moku: Go is a complete lab solution for engineers and students to actively test designs and projects. Featuring 12+ instruments, a full range of connectivity, and optional programmable power supplies, Moku:Go can do work anywhere eliminating the need for bulky bench top equipment. An intuitive user interface (UI) is included for Windows and Mac, and API support that integrates with the rest of your work. We’ve thought of everything to ensure engineers and students have a test solution that will go wherever your ideas go.

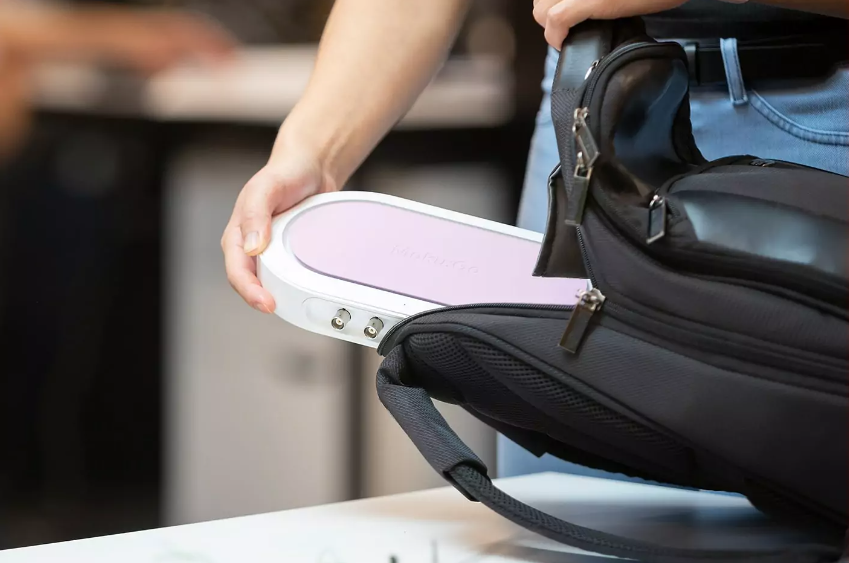

The lab that fits in your backpack

The new work anywhere, anytime culture has created a need for portable, highly integrated systems that can go with you. With all instruments plus a full range of features on one portable platform, any location can be your lab.


Unity between hardware and software

All Moku hardware is created based on software-defined instrumentation, and Moku:Go is no exception. It combines the signal-processing power of an FPGA with intuitive software to ensure students have access to all of the instruments they need on one platform.


Flexible power supplies for any project

Projects vary in complexity and scope. Moku:Go comes in 3 versions with varied power supply integration to ensure the perfect fit. Choose between no power supplies (M0), 2 channels (M1), or 4 channels (M2)

• Channel 1: -5 V to +5 V, 0 to 150 mA
• Channel 2: 0 to +16 V, 0 to 150 mA
• Channel 3 & 4: 0.6 V to +5 V, 0.06 to 1 A



    Key Features

    • 12+ lab equipment in one compact device
    • Ability to perform tests anytime anywhere
    • Take it in the backpack
    • Intuitive software user interface
    • Wireless connectivity
    • Affordable price
    • Upgrade instruments and get new instruments whenever you need them, with a simple software download
    • Easy to use high-level APIs for automation ( LabVIEW, Matlab, Python)

    Available Lab equipment

    • Oscilloscope/ Voltmeter
    • Waveform generator
    • Programmable power supplies
    • Frequency response analyzer
    • Arbitrary waveform generator
    • Digital logic analyzer/ Pattern generator
    • Phase meter
    • Spectrum analyzer
    • Lock-in amplifier
    • PID controller
    • Digital filter box
    • FIR filter builder
    • Data logger
    • Laser lock box

    Applications

    • Circuit design & characterization
    • Education and teaching
    • Digital circuit design and analysis

    Technical Specifications

    Analog I/O

    Analog inputs

    • Channels2
    • Bandwidth30 MHz
    • Sampling rate125 MSa/s per channel
    • Resolution12-bit
    • Input range10 Vpp or 50 Vpp
    • Input impedance1 MΩ
    • Input couplingAC / DC

    Analog outputs

    • Channels2
    • Bandwidth20 MHz
    • Sampling rate125 MSa/s per channel
    • Resolution12-bit
    • Output range10 Vpp into 1 MΩ
    • Output impedance200 Ω

    Digital I/O

    I/O

    • Channels16
    • Sampling rate62.5 MSa/s per channel
    • Logic level support3.3 V (5 V tolerant)

    Programmable Power Supply

    Power supply

    Two-channel

    • · Only available on M1 Model
    • · Output Voltage:
      • Channel 1: -5 V to +5V
      • Channel 2: 0 to +16 V
    • · Output Current:
      • Channel 1: 0 to 150 mA
      • Channel 2: 0 to 150 mA

    Four-channel

    • · Only available on M2 Model
    • · Output Voltage:
      • Channel 1: -5 V to +5V
      • Channel 2: 0 to +16 V
      • Channel 3 & 4: 0.6 V to +5 V
    • · Output Current:
      • Channel 1: 0 to 150 mA
      • Channel 2: 0 to 150 mA
      • Channel 3 & 4: 0.06 to 1 A

    Features & Accessories

    Programming Environment

    • PythonAPI support
    • MATLABAPI support + Live Scripting
    • WindowsStandalone App
    • MacOSStandalone App
    • LabVIEW

    Additional Ports

    • USB-C Port1
    • Magnetic Power Port1
    • Ethernet PortOnly available on M2 Model

    Accessories

    • DIO Cable Assembly1x
    • Oscilloscope Probes2x
    • Power Supply CablesN/A for M0 Model, 3x for M1 Model, or 6x for M2 Model
    • Magnetic Power Cord1x
    • Ethernet Cable1x for M2 Model
