Moku:Pro

Multiple professional-grade instruments in one integrated platform for the most demanding research and engineering applications

카탈로그 다운로드
From basic lab instruments like Oscilloscope and waveform generator to advanced test equipment like Lock-in amplifier and Phasemeter

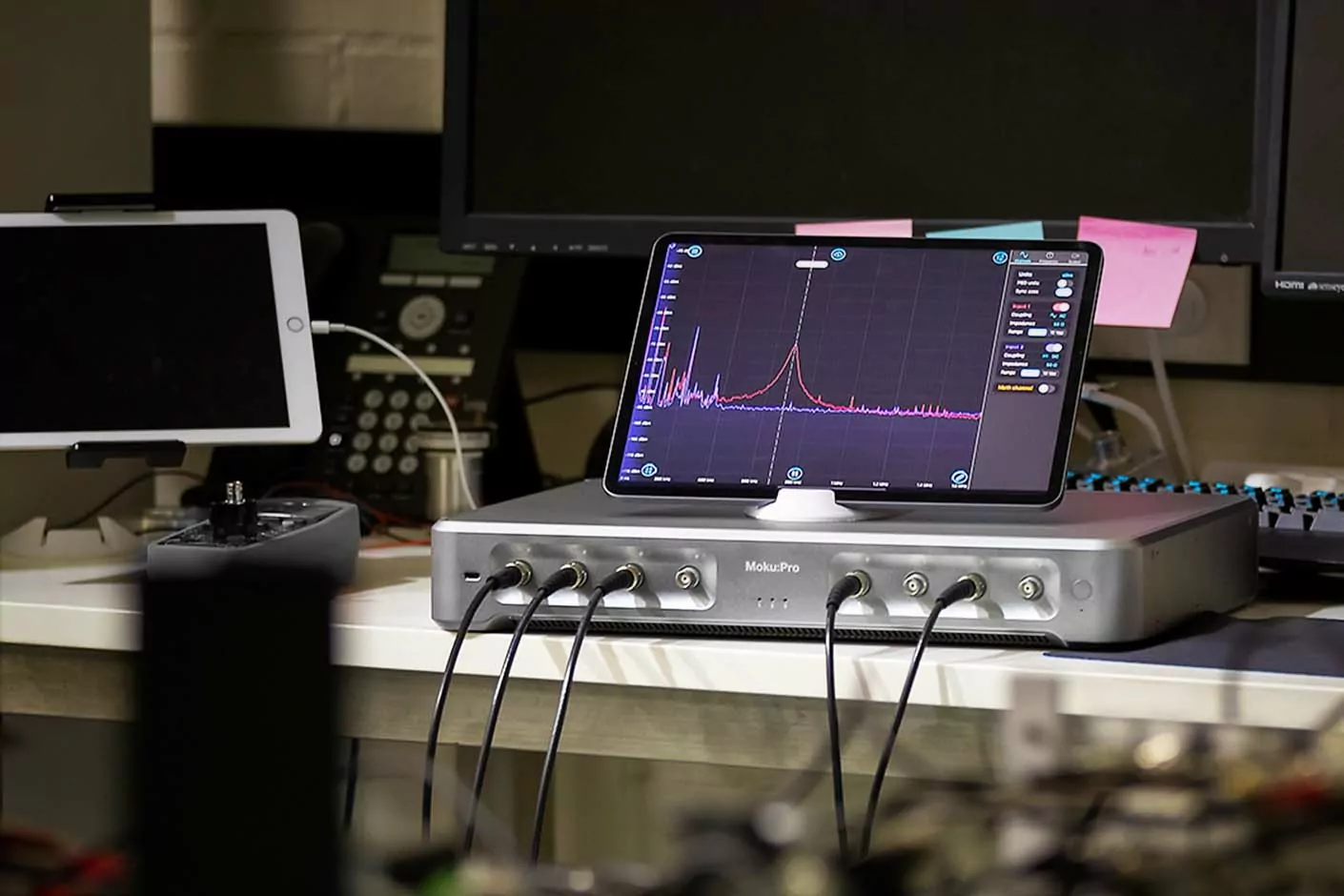

Moku:Pro






Flexible research, faster development, scalable in an instant

Welcome to the next generation of test. Moku:Pro delivers both performance and flexibility through sophisticated FPGA-based architecture, a high-bandwidth, low noise analog front end, and robust networking and storage. All of the instruments you need are available in an instant without compromising performance for flexibility. An innovative hybrid front-end design performs frequency-dependent signal blending from multiple ADCs, delivering exceptional noise performance from acoustic to radio frequencies. With 10 instruments on one hardware platform, engineers and researchers can streamline their test benches or even bring the lab home with them.

Software-enabled hardware

Moku:Pro is the most advanced system from the Moku suite of software defined instrument platforms. Harnessing the power of the FPGA combined with a high-quality analog front-end, Moku:Pro is able to host multiple instruments on a single hardware platform without sacrificing specs or precision. This approach to test equipment makes it possible to scale and expand the scope of research easily. With Moku:Pro, researchers and engineers already have the right tool for the job.


Blended ADCs for industry-leading noise performance



n test and measurement, flexibility has typically demanded tradeoffs in performance. We overcome these tradeoffs by using signals from a 5 GSa/s, 10-bit ADC and a 10 MSa/s, 18-bit ADC in a patented blending scheme to deliver a low noise floor and high dynamic range from 10 Hz to 600 MHz. This is achieved through a digital crossover network consisting of balanced high- and low-pass filters that implement real-time blending of the dual ADC data streams.

Engineer anywhere

By integrating test bench essentials like an oscilloscope, waveform generator, and more into a single hardware platform, Moku:Pro enables engineering teams to work from home. With a small footprint, low power consumption at 115 W, and 10 core test instruments, pivoting to remote work has never been easier.


Multi-instrument mode

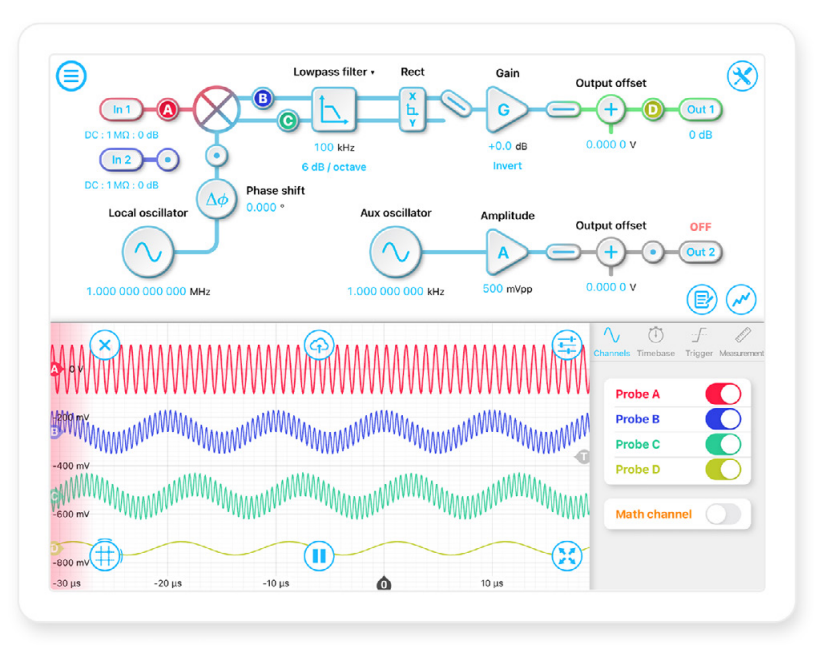

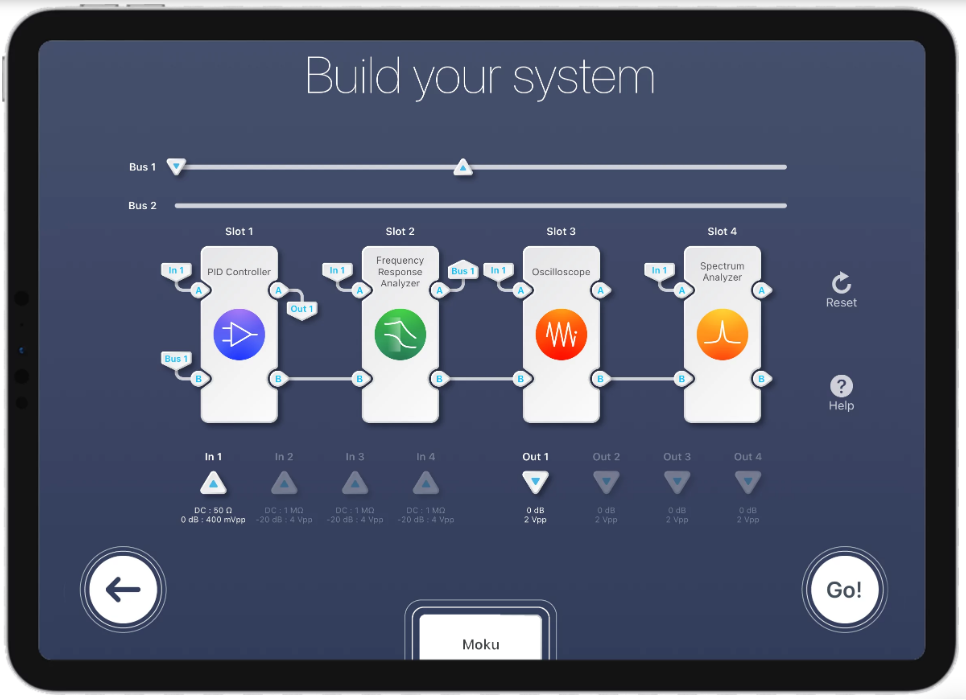

Moku:Pro’s multi-instrument mode lets you run multiple instruments at the same time and lets you connect these instruments to each other to build a customised test system.

Instruments running in this mode can be chained together to build sophisticated signal-processing pipelines. Advanced users can even drop in custom features designed in Moku Cloud Compile, giving them more flexibility than ever before.

Connections to the analog inputs, analog outputs, and adjacent instruments are run-time configurable for instant gratification. Your Moku:Pro is now even more powerful.

Available test Instruments

  • Oscilloscope
  • Waveform Generator
  • Spectrum Analyzer
  • Lock-in Amplifier
  • Phasemeter
  • Laser Lockbox
  • PID Controller
  • Arbitrary Waveform Generator
  • Digital Filter Box
  • FIR Filter Builder
  • Frequency Response Analyzer
  • Data Logger

Key Features

  • High-performance low-noise test platform with 12+ instruments
  • Multiple inputs and outputs ( 4 inputs / 4 outputs )
  • use multiple instruments simultaneously with multi-instrument mode
  • Ability to make custom equipment by accessing Moku FPGA and compiling code on the cloud

Applications

  • Advanced optics and Photonics research
  • Electronic circuit design and test
  • Control system design and test

Moku:Pro Technical Specifications


Analog I/O

Analog inputs

  • Channels4
  • Bandwidth600 MHz (up to 2 channels). 300 MHz (up to 4 channels)
  • Sampling rate5 GSa/s (1 channel), 1.25 GSa/s (4 channels)
  • Resolution 10-bit and 18-bit ADCs with automatic blending
  • Maximum voltage range40 Vpp
  • Input Impedance50 Ω or 1 MΩ
  • Input couplingAC or DC
  • AC coupling corner16 kHz into 50 Ω, 1.6 Hz into 1 MΩ
  • Input voltage noise30 nV√Hz at 100 Hz
  • Input referred noise500 μV RMS

Analog outputs

  • Channels 4
  • Bandwidth500 MHz (± 1 V), 100 MHz (± 5 V)
  • Sampling rate1.25 GSa/s
  • Resolution16-bit
  • Voltage Range10 Vpp into 50 Ω
  • Output impedance50 Ω
  • Output couplingDC

Features & Accessories

User Interface

  • iPad App
  • Windows and Mac Apps

Programming Environment

  • Python
  • MATLAB

Additional Ports

  • Ethernet
  • USB-C
  • 10 MHz reference clock in and out

External trigger input

External trigger

  • Trigger waveformTTL compatible
  • Trigger bandwidthDC to 5 MHz
  • Trigger impedanceHi-Z
  • Min trigger level1.8 V
  • Max trigger level5 V
  • ConnectorBNC

Clock reference

On-board clock

  • Frequency10 MHz
  • Stability< 300 ppb

10 MHz reference input

  • Expected waveformsSine / square
  • Frequency10 MHz ± 20 kHz
  • Input range-6 dBm to +10 dBm
  • ConnectorBNC

10 MHz reference output

  • Waveform typeSquare
  • Output frequency10 MHz
  • Output level6 dBm
  • ConnectorBNC
